TruckLine Comparison
|

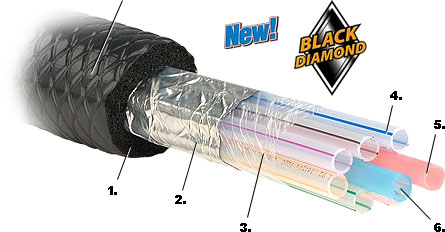

Micro Matic Black Diamond |
Flooded Trunkline |
Copper Core Trunkline |
Exterior Barrier Jacket |
Yes Patented Black Diamond® Jacket |
Yes 10ml Vapor Barrier |
No |
Insulation | ¾“ Armaflex | 1/2" Armaflex 3/4 " Optional | ¾“ Armaflex |
Cold Transfer Wrap |
Yes Aluminum Foil Wrap |
No | No |
Interior Trunkline Moisture BarrierWrap |
Yes Food Quality Barrier Film |
No |
Yes Moisture Resistant Adhesive |
Tubing Size Available | 3/8, 5/16, 1/4 | 5/16, 1/4 | 3/8, 5/16, 1/4 |
Maximum Number of Products |
12 |
10 - 6 lines in the coolant sleeve and 4 lines between the sleeve and foam insulation |
12 |
FDA Certified | Yes | No | No |
NSF Certified | Yes | No | No |
Colour Coded Lines for Identification | Yes | No | Yes |
Brew Master II Barrier Tubing |
Yes | No | Yes |
Maximum Trunkline Length | 328ft |
140 feet with up to eight 5/16" lines ( 4 lines in the sleeve and 4 on the outside ) |
500ft |
Glossary of Terms
Barrier Jacket - Has a 15% improvement in insulation performance compared to our equivalent taped trunlklines and even more for non-taped trunks. Braiding reinforced - resistant to tearing. Durable easy glide surface reduces installation time and saves money.
Insulation - Designed to keep the cold temperature in and warm temperature out
Cold Transfer Wrap - Conducts cold transfer from glycol lines to product lines.
Moisture Barrier Wrap - Prevents condensation from compromising insulation
Tubing Size - The inside diameter of the individual beer line.
Longer line runs need a larger diameter to deliver the beer to the beer tower
Number of Products - Maximum number of products in trunkline.
FDA Certified - FDA registration is required for all companies that manufacture, process, pack or store food or beverages that may be consumed in the United States. Companies located outside the U.S. must designate a U.S. Agent for FDA communications.
NFS Certified- NSF is a not-for-profit, non-governmental organization and is the leading global provider of public health and safety risk management solutions. NSF International is a World Health Organization Collaborating Centre for Food Safety and for Drinking Water Safety and Treatment and they provide product certification and safety audits for the food and water industries.
Colour Coded Lines- Colour coded lines for easy identification during installation and servicing.
Brewmaster II Barrier Tubing - Is an ultra-smooth inner surface which reduces bacteria and yeast adherence to give improved beer quality in the glass. It also offers increased strength and low gas permeability due to its nylon layers. This keeps beer fresh and maintains carbonation even when left in lines for longer periods. Outer layer construction enhances cost-effectiveness and makes this tube the ideal choice for those seeking to upgrade from MDP.
Trunkline Length- The maximum length for the trunkline from the cooler to the bar
